In the industrial landscape, efficiency, reliability, and precise control are critical for smooth operations. Pneumatic ball valves have become indispensable for their ability to provide accurate flow control, durability, and automation ease. In this article, we will explore the various types of pneumatic ball valves, their applications, and the advantages they offer.
What is a Pneumatic Ball Valve?
A pneumatic ball valve is a type of valve that uses a pneumatic actuator to open and close the valve. The valve itself consists of a spherical disc, which controls the flow through it. The pneumatic actuator, powered by compressed air, rotates the ball to a desired position, allowing for precise control of fluid flow.

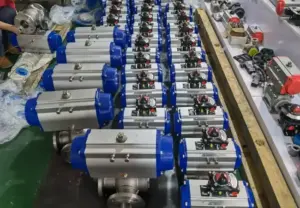

Types of Pneumatic Ball Valves
Pneumatic ball valves come in several types, each designed to meet specific industrial requirements. Understanding these types helps in selecting the right valve for your application.
1. Two-Way Pneumatic Ball Valve
The two-way pneumatic ball valve is the most common type. It has one inlet and one outlet, providing simple on/off control. This type is widely used in various applications for its straightforward operation and reliability.
- Simple design and operation
- Reliable and long-lasting
- Cost-effective
2. Three-Way Pneumatic Ball Valve
The three-way pneumatic ball valve features three ports, allowing for more complex flow control. It can be configured in two ways: T-port and L-port. The T-port allows fluid to flow through two ports simultaneously, while the L-port directs flow from one inlet to one of two outlets.
- Versatile flow control
- Can replace multiple two-way valves
- Reduces the need for additional piping
3. High-Pressure Pneumatic Ball Valve
Designed to handle high-pressure applications, the high-pressure pneumatic ball valve is built with robust materials to withstand extreme conditions. These valves are crucial in industries where maintaining high pressure is essential for operation.
- Durable and capable of withstanding high pressures
- Ensures safety in high-pressure environments
- Long operational life
4. Pneumatic PVC Ball Valve
The pneumatic PVC ball valve is made from polyvinyl chloride, making it resistant to corrosion and chemicals. This type of valve is ideal for applications involving corrosive substances or environments where metal valves would deteriorate.
- Corrosion-resistant
- Lightweight and easy to install
- Cost-effective
5. Stainless Steel Pneumatic Ball Valve
The stainless steel pneumatic ball valve is known for its strength and resistance to extreme temperatures and corrosive environments. This makes it suitable for demanding applications where other materials might fail.
- High strength and durability
- Resistant to corrosion and extreme temperatures
- Hygienic and easy to clean
Key Considerations for Selecting Pneumatic Ball Valves
Choosing the right pneumatic ball valve for your application involves several key considerations:
Flow Requirements
Determine the flow rate and pressure requirements of your system. High-pressure applications will need robust valves designed to handle the stress, while standard applications can use more conventional valves.
Material Compatibility
Ensure the valve material is compatible with the fluid being transported. For example, corrosive chemicals require PVC or stainless steel valves, while water systems can use brass or bronze.
Port Configuration
Decide between two-way or three-way valves based on the complexity of your flow control needs. Three-way valves are ideal for mixing or diverting applications, while two-way valves are suitable for simple on/off control.
Actuation Speed
Consider the speed at which the valve needs to operate. Some applications may require fast-acting valves, while others may benefit from slower, more controlled actuation.
Advantages of Using Pneumatic Ball Valves
Pneumatic ball valves offer several advantages over manual or electric valves:
Precision Control
Pneumatic actuators provide precise control over the valve position, allowing for accurate flow regulation. This is particularly important in processes where exact measurements are crucial.
Automation Capability
Pneumatic ball valves can be easily integrated into automated systems, enabling remote operation and monitoring. This reduces the need for manual intervention and increases overall efficiency.
Durability and Reliability
Built with robust materials, pneumatic ball valves are designed to withstand harsh conditions and provide long-term reliability. They require less maintenance compared to other types of valves.
Energy Efficiency
Pneumatic actuators are energy-efficient and can be powered by standard compressed air sources. This makes them more cost-effective in the long run, especially in large-scale operations.
Applications of Pneumatic Ball Valves
Pneumatic ball valves are versatile and find applications across various industries:
Water Treatment
Used for regulating the flow of water in treatment plants, ensuring efficient processing and distribution.
HVAC Systems
Integrated into heating, ventilation, and air conditioning systems for precise temperature and airflow control.
Chemical Processing
Ideal for controlling the flow of corrosive and hazardous chemicals, providing safety and reliability.
Oil and Gas
Used in pipelines and processing plants to control the flow of oil and gas, ensuring safe and efficient operation.
Food and Beverage
Utilized in food processing and beverage production for hygienic and efficient flow control.
Conclusion
Pneumatic ball valves are essential components in modern industrial systems, offering versatility, precision, and reliability. By understanding the different types of pneumatic ball valves and their specific applications, you can make an informed decision to enhance the efficiency and performance of your operations.
Whether you need a simple two-way valve for an HVAC system or a robust high-pressure valve for an oil and gas application, there’s a pneumatic ball valve that fits your needs. Invest in the right type of pneumatic ball valve to ensure smooth and efficient operation in your industrial processes.
