High Temperature Solenoid Valves

VINCER VSHT-08 high temperature solenoid valve is a pilot-operated solenoid valve designed for high-temperature fluid control in steam systems, boiler pipelines, and other demanding thermal applications.

Request a Technical Quote

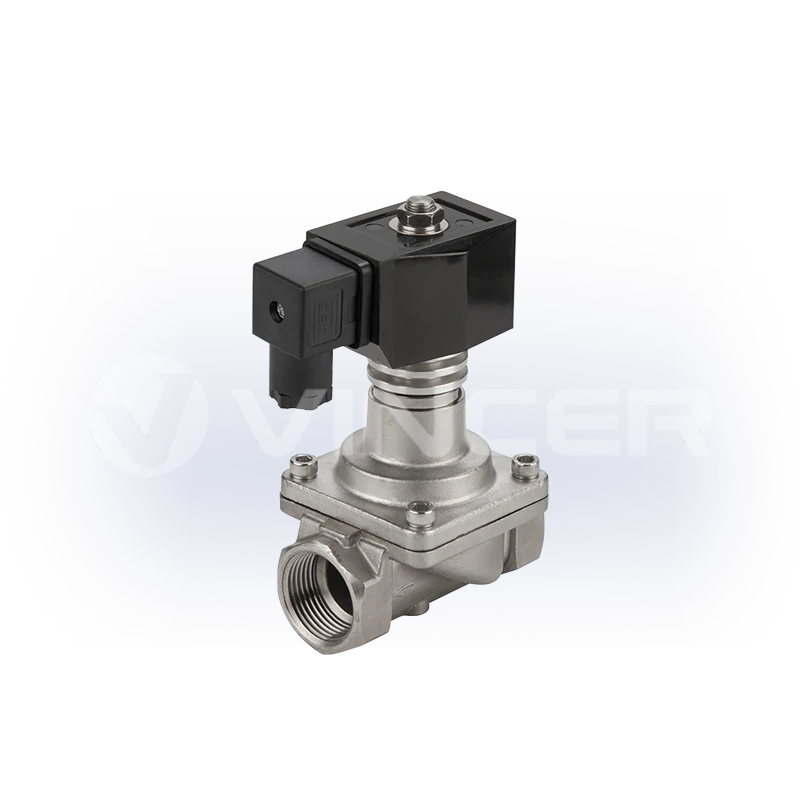

VS08T-HT high temperature solenoid valve-VINCER
VS08T-HT high temperature solenoid valve-VINCER

High Temperature Solenoid Valves

Product Model

VS08 High Temperature Solenoid Valve (Threaded): VS08T-HT
VS08 High Temperature Solenoid Valve (Flanged): VS08F-HT

Description

VSHT-08 high temperature solenoid valve is a pilot-operated solenoid valve built for high-temperature fluid control in applications where standard NBR or EPDM seals would fail. It requires a minimum inlet pressure of 0.3 bar to actuate, with a working pressure range up to 25 bar (custom up to 100 bar).

Its temperature capability depends on the seal configuration: PTFE seals cover continuous service up to 200°C, suitable for hot water and general steam applications; PEEK seals combined with a heat sink extend this to 300°C for saturated steam and more demanding process lines.

Both threaded (DN15 to DN50) and flanged (DN50 to DN100) versions are available, making the VSHT-08 high temperature solenoid valve suitable for both equipment-level connections and larger pipeline installations.

Size Ranges: Threaded Connection: DN15 to DN50 (1/2″ to 2″), Flanged Connection: DN50 to DN100 (2″ to 4″)
Pressure Range: 0.3 bar to 25 bar (custom up to 100 bar)
Temperature Range: -20°C to 300°C
Valve Material: Stainless Steel
End Connection Type: Threaded (NPT, G)/Flanged
OEM Support: Yes

Send Inquiry Now

Meets Safety Standards

Technical Specifications

high temperature solenoid valves
ModelVS08T-HTVS08F-HT
End Connection TypeThreaded (NPT, G)Flanged
Size RangeDN15 to DN50 (1/2" to 2")DN50 to DN100 (2" to 4")
Pressure Range0.3 bar to 25 bar (custom up to 100 bar)
Sealing MaterialsHigh Performance PTFE/PEEK
Temperature Ranges-20°C to 200°C (PTFE)/-20°C to 300°C (PEEK+Heat sink)
Valve Body MaterialStainless Steel
Voltage12V/24V DC; 24V/110V/220V AC
FunctionNormally Closed / Normally Open

Features Of High Temperature Solenoid Valves

01
High Temperature
VSHT-08 high temperature solenoid valve with PEEK seals and heat sink achieves a continuous operating temperature of 300°C, covering saturated steam lines and high-temperature process pipelines where most solenoid valves on the market are rated only to 180°C or below. The standard PTFE version handles up to 200°C, suitable for hot water and lower-pressure steam applications.
02
Connection Options for Different Installation Scales
The threaded model (VS08T-HT) covers DN15 to DN50 for equipment-level and small-bore pipeline installations. The flanged model (VS08F-HT) extends to DN50 to DN100 and is one of the few solenoid valves in the VINCER range available in flanged connections, suitable for larger industrial pipelines.
03
Pilot-Operated Design
VSHT-08 high temperature solenoid valve uses inlet pressure to assist actuation (minimum 0.3 bar required), which reduces the electromagnetic load on the coil in high-temperature environments. The coil is also designed with enhanced heat resistance and rapid heat dissipation to prevent overheating during continuous-duty operation.
04
High-Performance Sealing Throughout
All high temperature solenoid valve models use a stainless steel valve body for corrosion resistance and structural integrity under thermal cycling. The high-performance PTFE seal material offers excellent chemical inertness and low friction, while PEEK provides superior mechanical strength and dimensional stability at extreme temperatures.
