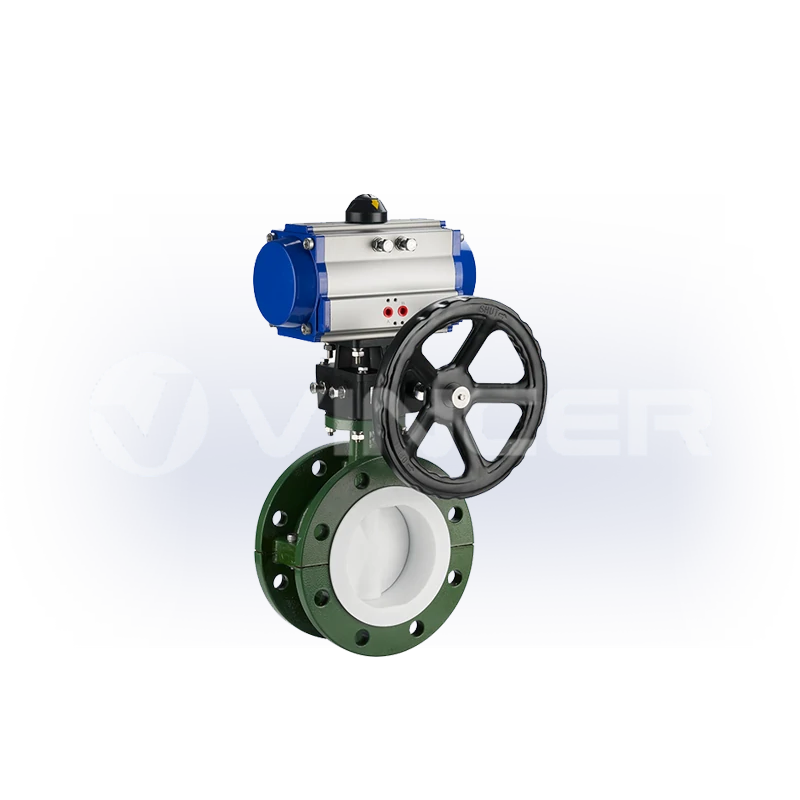

Pneumatic PTFE-Lined Flanged Butterfly Valve - VINCER

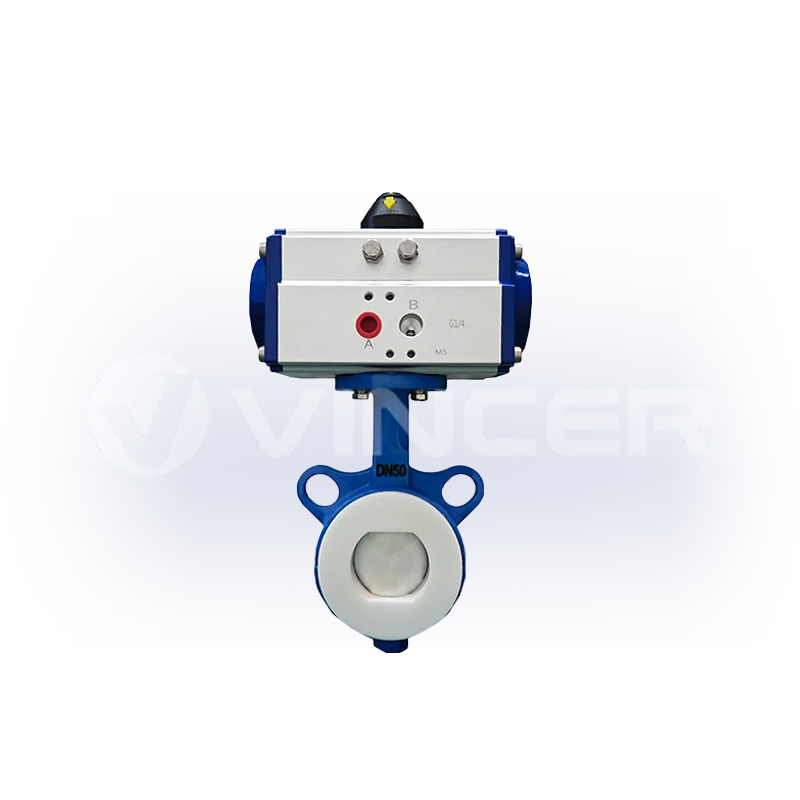

Pneumatic PTFE-Lined Wafer Butterfly Valve - VINCER

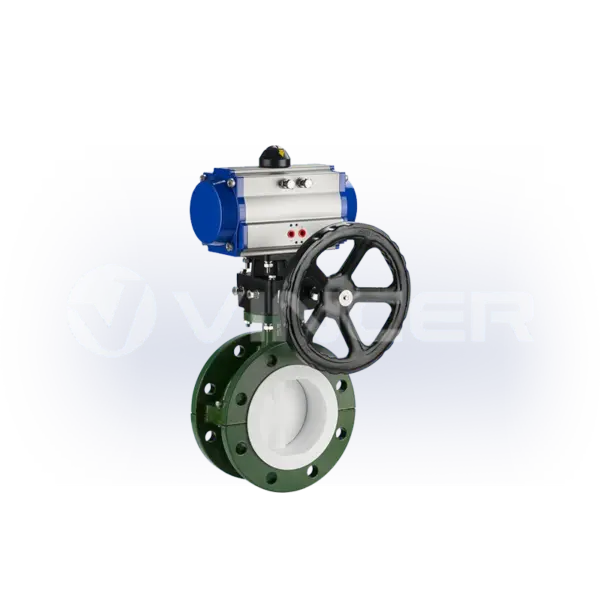

Pneumatic PTFE-Lined Flanged Butterfly Valve - VINCER

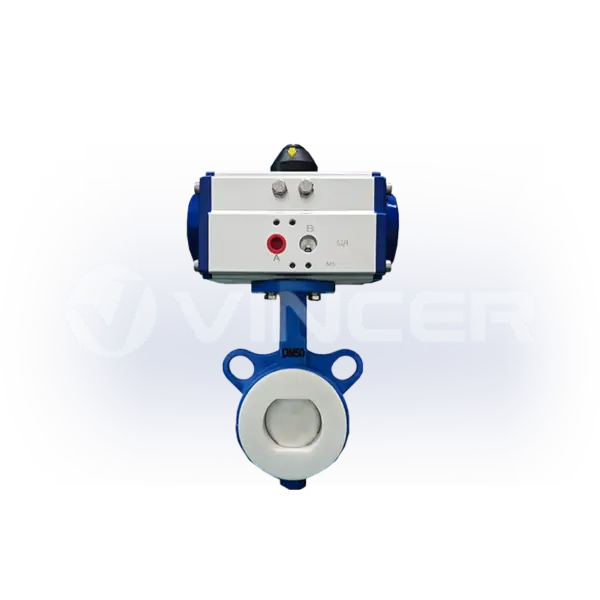

Pneumatic PTFE-Lined Wafer Butterfly Valve - VINCER

Pneumatic PTFE-Lined Butterfly Valves

Product Model

Pneumatic PTFE-Lined Wafer Butterfly Valve: AT-20WPL
Pneumatic PTFE-Lined Flanged Butterfly Valve: AT-20FPL
Pneumatic PTFE-Lined Lugged Butterfly Valve: AT-20LPL

Description

Pneumatic PTFE-lined butterfly valves combine a PTFE-lined butterfly valve body with an AT series pneumatic quarter-turn actuator for automated isolation and general throttling duties in corrosive fluid systems.

The PTFE lining forms a corrosion-resistant barrier between the process medium and the valve body, helping protect the metal body from direct contact with compatible acids, alkalis, solvents, and other chemical solutions. This makes the valve suitable for chemical processing, wastewater treatment, electroplating lines, chemical dosing systems, and other applications where unlined metal butterfly valves may not be suitable.

Wafer, lugged, and flanged body designs are available for different pipeline installation requirements. Wafer versions provide a compact installation option between mating pipe flanges. Lugged versions offer a more secure bolted mounting structure. Flanged versions provide integral flange connections for permanent process pipelines where a conventional bolted installation is preferred.

PTFE seat material is used for corrosion resistance and sealing compatibility. The valve can be supplied with PTFE or stainless steel disc material options according to the process medium and operating conditions. Body material options include carbon steel and stainless steel grades with PTFE lining.

Single-acting and double-acting pneumatic actuator options are available. The single-acting actuator uses air to open and spring return when the air supply is interrupted, while the double-acting actuator uses compressed air for both opening and closing. Pneumatic accessories such as solenoid valves, limit switch boxes, pneumatic positioners, FRL units, and pneumatic handwheels can be supplied according to the required control method.

Pneumatic PTFE-lined butterfly valves are commonly used in chemical plants, acid and alkali transfer systems, wastewater treatment, electroplating equipment, chemical storage and transfer lines, and automated process skids handling corrosive fluids.

Size Range: DN50 to DN400 (2″ to 16″)
Max. Allowable Operating Pressure: 16 bar
Temperature Range: -20°C to 150°C
Valve Body Materials (with PTFE lined): Carbon Steel / SS304 (CF8) / SS316(CF8M) / SS316L (CF3M)
Butterfly Disc Materials: PTFE / SS304 (CF8) / SS316(CF8M) / SS316L (CF3M)
End Connections: Wafer / Lugged / Flanged
Connection Standard: GB / DIN / ASME(ANSI) /JIS
OEM Support: Yes

Send Inquiry Now

Meets Safety Standards

Actuator Technical Specifications

Actuator Type Single Acting Pneumatic Actuator Double Acting Pneumatic Actuator
Product Model ATSR ATDA
Torque Range 5.7 Nm to 2,792 Nm 8 Nm to 4,678 Nm
Air Supply Pressure 2.5 bar to 8 bar
Actuator Rotation 90 Degrees
Spring Quantity Up to 12 /
Temperature Range -20°C to 80°C
Protection Level IP65
Features Air to open, spring return when air supply is interrupted Air to open, air to close
Pneumatic Accessories pneumatic positioner / limit switch / pneumatic solenoid valve / pneumatic F.R.L.units or pneumatic handwheel
*Custom specifications are available

Valve Body Technical Specifications

Connection Standard GB / DIN / ASME(ANSI) /JIS
Size Range DN50 to DN400 (2″ to 16″)
End Connections Wafer / Lugged / Flanged
Max. Allowable Operating Pressure 16 bar
Seat Material PTFE
Temperature Range -20°C to 150°C
Valve Body Materials (with PTFE lined) Carbon Steel / SS304 (CF8) / SS316(CF8M) / SS316L (CF3M)
Butterfly Disc Materials PTFE / SS304 (CF8) / SS316(CF8M) / SS316L (CF3M)
*Custom specifications are available

Dimension

Download

Accessories for Pneumatic Valve Automation

Configure your pneumatic valve package with accessories for remote control, valve position feedback, air preparation, manual override, and modulating control.
Pneumatic Accessories - VINCER

Pneumatic Solenoid Valve: Controls the air supply direction to open or close the pneumatic actuator, enabling remote and automated valve operation.

Pneumatic Positioner: Receives a control signal and adjusts the actuator position to achieve proportional valve opening for flow regulation applications.

Limit Switch Box: Provides open and closed valve position feedback, allowing the control system to monitor valve status remotely.

Manual Handwheel: Allows local manual operation of the pneumatic valve when manual override is required during commissioning or maintenance.

FRL Unit: Filters, regulates, and lubricates the compressed air supply to help maintain stable actuator operation and protect pneumatic components.
