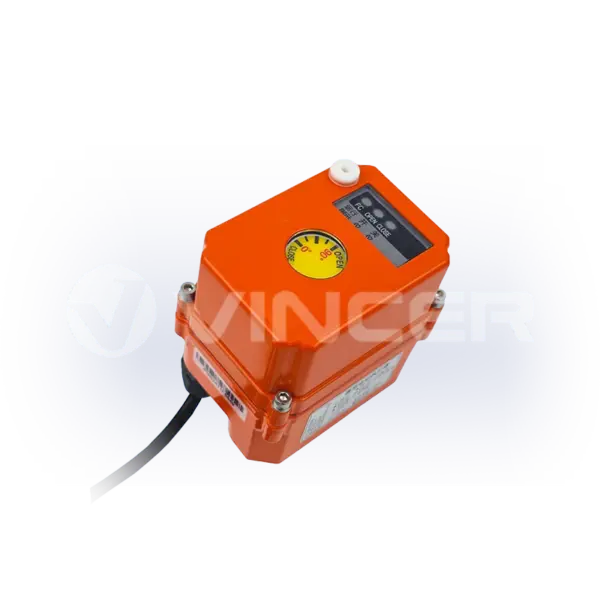

Miniature Electric Actuator On/Off Type - VINCER
Miniature Electric Actuator On/Off Type - VINCER

Miniature Electric Actuators

Product Model

On/Off Type Miniature Electric Actuator: VMK
Modulating Type Miniature Electric Actuator: VML

Description

This series miniature electric actuator is a compact valve automation device designed for applications with limited mounting space or where reduced actuator weight is required. It uses an aluminum alloy die-cast housing and a metal gear transmission structure to support stable operation in compact automated valve assemblies.

Two control types are available: the VMK on/off type for fully open and fully closed valve operation, and the VML modulating type for proportional valve positioning. The actuator supports multiple control signal options and can be used with small ball valves, butterfly valves, and other quarter-turn valves in automated fluid control systems.

An optional function is available for both on/off and modulating types. When this function is selected, a super capacitor module provides the stored energy required for the actuator to return the valve to a preset position after power failure.

Voltage: 12V/24V DC; 24V/110V/220V AC
Input/Output Signals: 4-20mA, 0-10V DC, 1-5V DC, RS485, WIFI, 4G
Open/Close time(0-90°): 8 to 20 S
Torque Range: 10 Nm to 200 Nm
Temperature Range: -25°C to 65°C
OEM Support: Yes

Send Inquiry Now

Meets Safety Standards

Technical Specifications

Actuator Type On/Off Type Modulating Type
Voltage 12V/24V DC; 24V/110V/220V AC
Actuator Rotation 0 to 300 Degrees
Input/Output Signals 4-20mA, 0-10V DC, 1-5V DC, RS485, WIFI, 4G
Open/Close time(0-90°) 8 to 20 S
Torque Range 10 Nm to 200 Nm
Temperature Range -25°C to 65°C
Protection Level IP65
Optional Functions Returns the valve to a preset position after power failure by using a super capacitor module.(available on both types)
Features Control panel features status indicator lights showing current valve position; controlled via a rotary knob. Control panel features an OLED display showing the current valve opening percentage; controlled via a rotary knob.
*Custom specifications are available

Dimension

Download
