Electric Threaded Ball Valves

Product Model

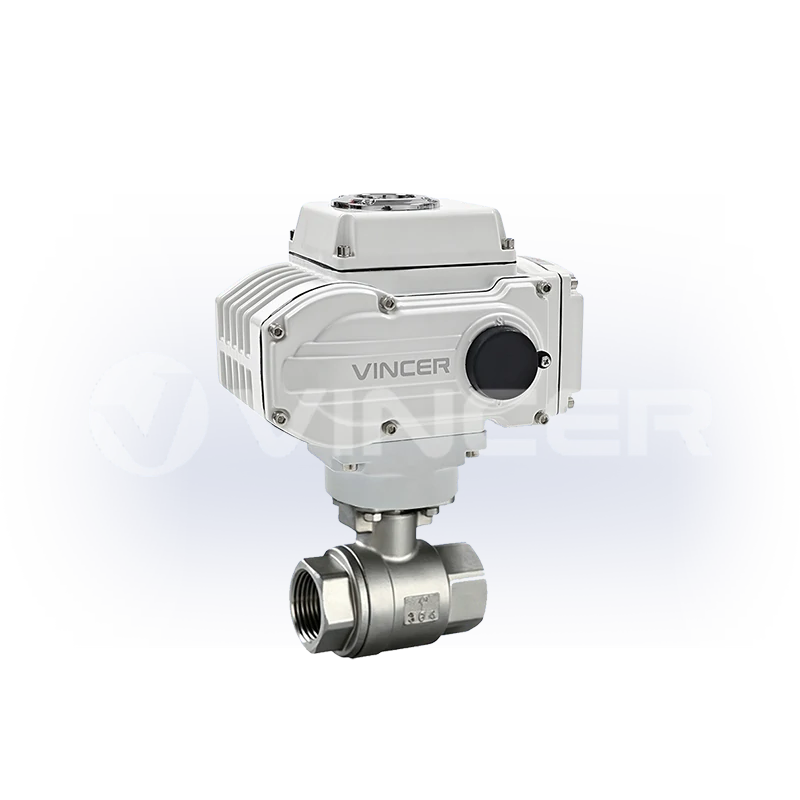

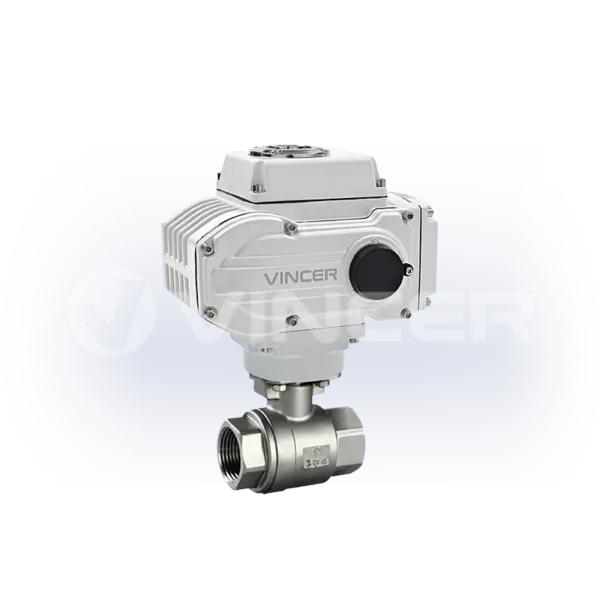

Electric Threaded 2-Way Ball Valve: VK-10T

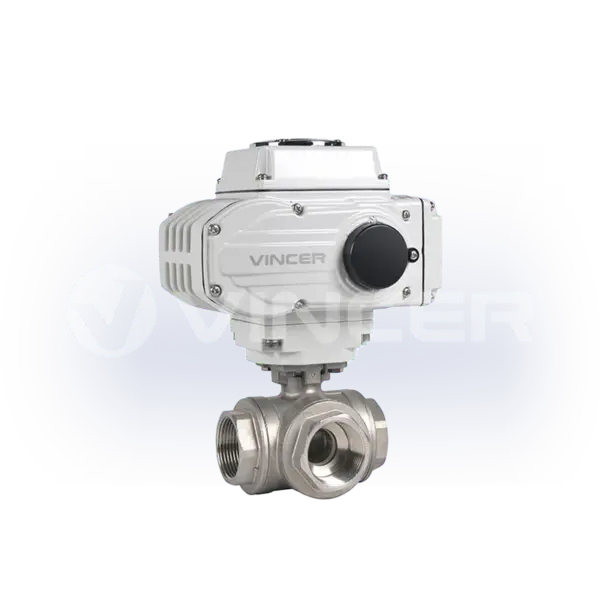

Electric Threaded 3-Way Ball Valve: VK-10T3

Description

Electric threaded ball valves combine a compact threaded ball valve with a quarter-turn electric actuator for automated shut-off in small and medium-diameter piping systems. They are available in 2-way and 3-way configurations for applications requiring either on-off isolation or flow diversion and mixing between multiple pipeline routes.

The threaded connection design provides a practical installation solution for pipelines where welding or flanged joints are not required. It is commonly used in packaged equipment, skid-mounted systems, utility lines, water treatment units, HVAC installations, and general industrial automation systems. Compared with flanged valve assemblies, threaded electric ball valves can help reduce installation space and simplify replacement in compact piping layouts.

PTFE seats provide dependable sealing and compatibility with a wide range of compatible liquids, gases, oils, and chemical media. Stainless steel body materials are suitable for general industrial service as well as applications where improved corrosion resistance is required.

The 2-way version is primarily used for automated pipeline isolation. The 3-way version provides an additional flow path and can be used for media diversion, mixing, bypass lines, or switching between separate process routes. The valve can be fitted with ON/OFF, modulating, or intelligent electric actuators to suit remote open-close operation, adjustable opening-angle control, or local status monitoring requirements.

Electric threaded ball valves are widely used in OEM equipment, water treatment systems, chemical dosing units, industrial process skids, building services, and other automated fluid handling applications where compact installation and electric actuation are required.

Size Range: DN15 to DN100 (1/2″ to 4″)
Max. Allowable Operating Pressure: Up to 64 bar, depending on valve size and configuration
Temperature Range: -20°C to 150°C
Valve Materials: SS304 (CF8) / SS316(CF8M) / SS316L (CF3M)
Body Style: 2-Way / 3-Way
End Connection Type: Threaded
Thread Connection: Available in common BSP and NPT thread standards
Connection Standard: GB / DIN / ASME(ANSI) /JIS
OEM Support: Yes

Send Inquiry Now

Meets Safety Standards

Actuator Technical Specifications

Actuator Type On/Off Type Modulating Type Intelligent Type
Product Model VK VR VI
Voltage 12V/24V DC; 24V/110V/220V/380V AC
Actuator Rotation 90 Degrees 0 to 90 Degrees 0 to 90 Degrees
Input/Output Signals dry contact signal, passive contact signal 4-20mA, 1-5V DC, 0-10V DC
Open/Close time(0-90°) 20 to 100 S
Torque Range 50 Nm to 4,000 Nm
Temperature Range -30°C to 60°C
Protection Level IP65 / IP67
Features For 90-degrees fully open/fully close Adjust the opening/closing angle via the adjustment module Add a LCD display screen to the Modulating Type based on its original configuration
*Optional: Compact, waterproof, or explosion-proof electric actuators

Valve Body Technical Specifications

Connection Standard GB / DIN / ASME(ANSI) /JIS
Size Range DN15 to DN100 (1/2″ to 4″)
End Connection Type Threaded
Thread Connection Available in common BSP and NPT thread standards
Body Style 2-Way 3-Way
Max. Allowable Operating Pressure Up to 64 bar, depending on valve size and configuration
Seat Material PTFE
Temperature Range -20°C to 150°C
Valve Body Materials SS304 (CF8) / SS316(CF8M) / SS316L (CF3M)
*Custom specifications are available

Dimension

Download

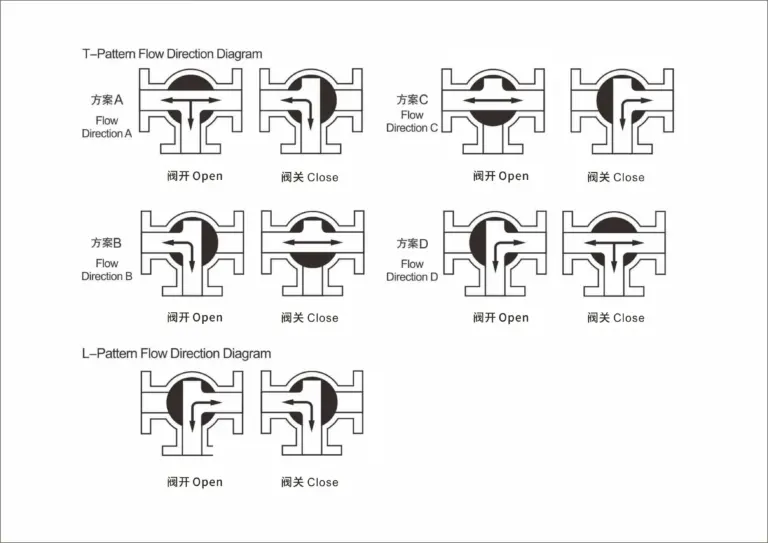

3-Way Ball Valve Flow Patterns & Direction Diagrams

Configure your multi-port automation loop seamlessly by choosing between our standard T-port and L-port flow arrangements designed for precise fluid diverting, mixing, and bypassing.
3-Way Ball Valve Flow Direction Diagram - VINCER
