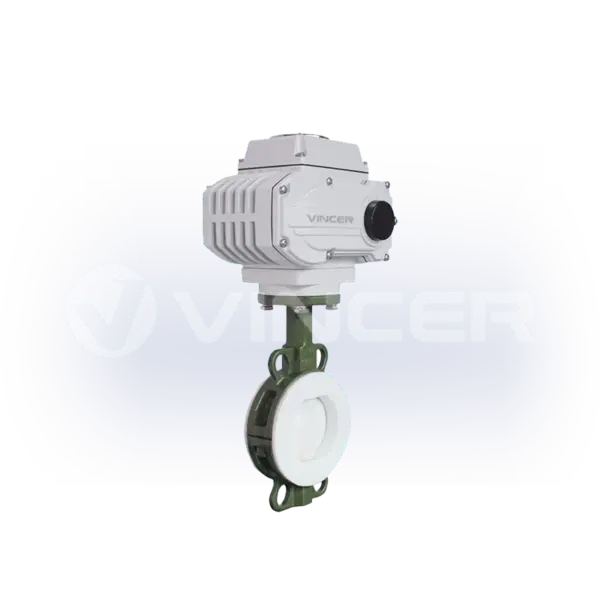

Electric PTFE-Lined Wafer Butterfly Valve - VINCER

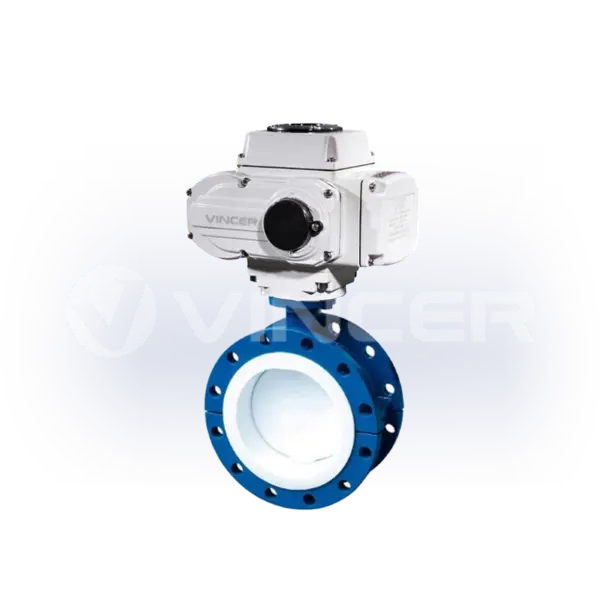

Electric PTFE-Lined Flanged Butterfly Valve - VINCER

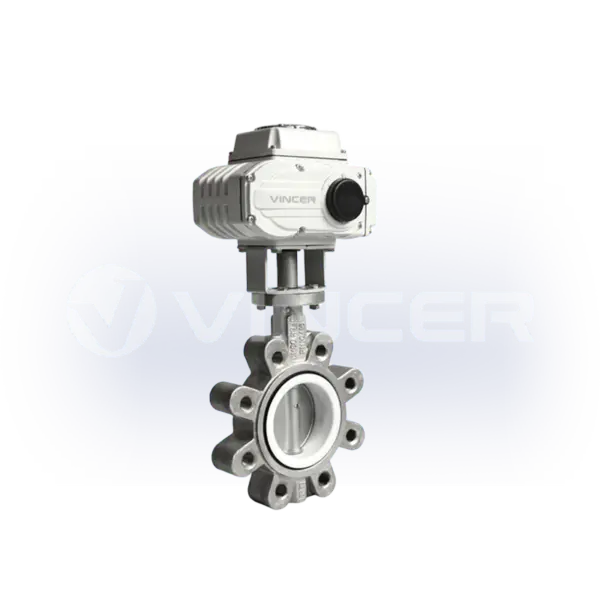

Electric PTFE-Lined Lugged Butterfly Valve - VINCER

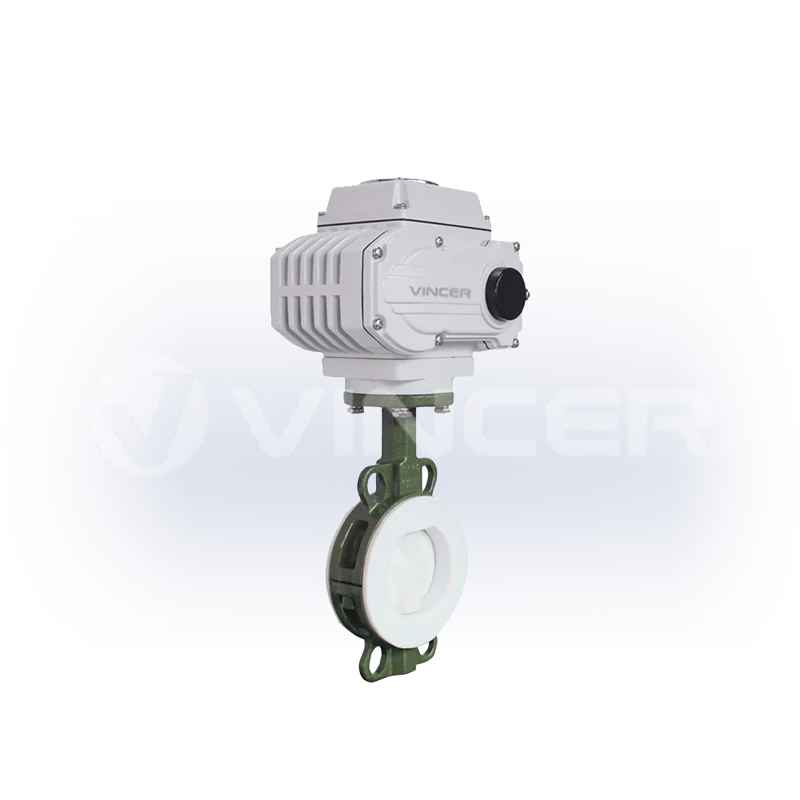

Electric PTFE-Lined Wafer Butterfly Valve - VINCER

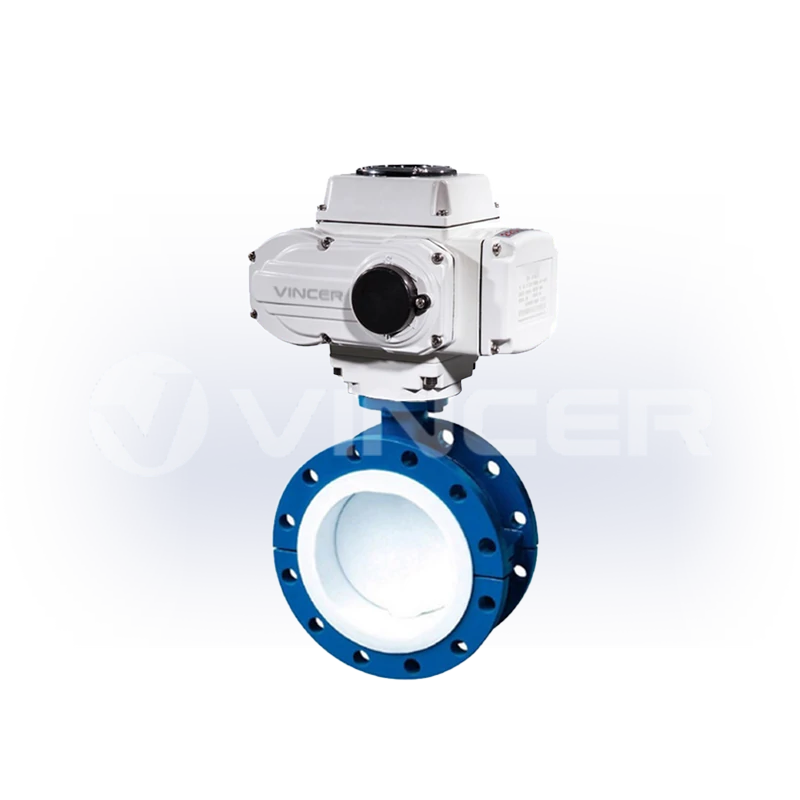

Electric PTFE-Lined Flanged Butterfly Valve - VINCER

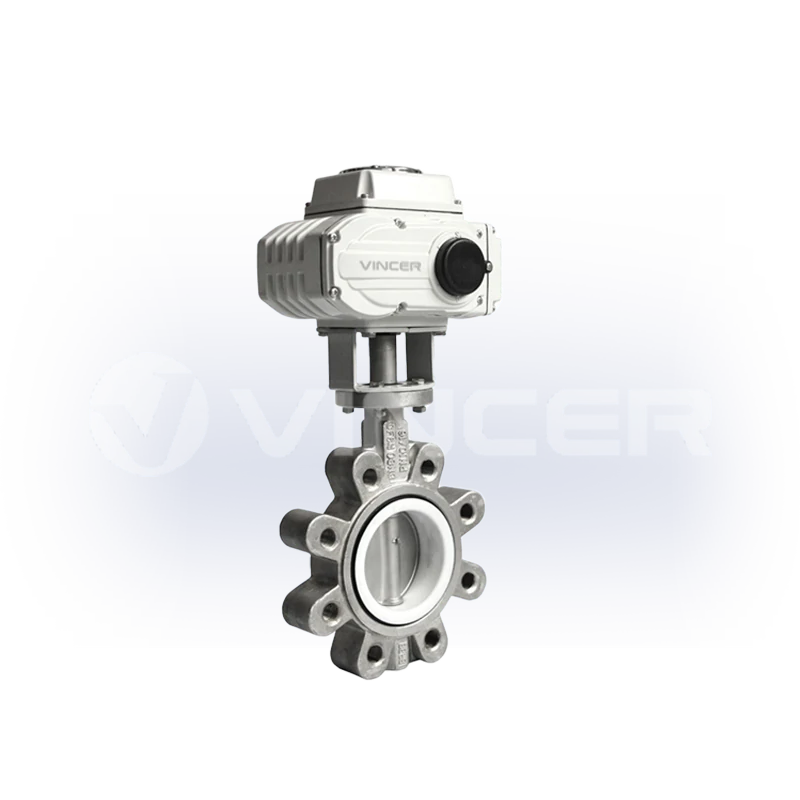

Electric PTFE-Lined Lugged Butterfly Valve - VINCER

Electric PTFE-Lined Butterfly Valves

Product Model

Electric PTFE-Lined Wafer Butterfly Valve: VK-20WPL
Electric PTFE-Lined Flanged Butterfly Valve: VK-20FPL
Electric PTFE-Lined Lugged Butterfly Valve: VK-20LPL

Description

Electric PTFE-lined butterfly valves are designed for automated isolation and general throttling of corrosive process media. The PTFE lining creates a corrosion-resistant barrier between the process fluid and the valve body, allowing the valve to be selected for compatible acids, alkalis, solvents, and other chemical solutions where unlined metal valves may be unsuitable.

The series is available in wafer, lugged, and flanged body designs to match different piping arrangements. Wafer versions provide a compact installation option between mating pipe flanges. Lugged versions use threaded mounting lugs, allowing each pipeline flange to be bolted to the valve body separately. Flanged versions provide integral flange connections for permanent process pipelines where a conventional bolted installation is preferred.

PTFE is used for the sealing and disc configuration to support corrosion resistance throughout the valve flow path. Carbon steel and stainless steel body options with PTFE lining allow the valve construction to be selected according to the external operating environment and project material requirements.

The valve can be equipped with ON/OFF, modulating, or intelligent electric actuators for remote open-close operation, adjustable disc positioning, and local status monitoring. Electric PTFE-lined butterfly valves are commonly used in chemical transfer systems, acid and alkali handling lines, wastewater treatment, electroplating equipment, chemical dosing systems, and other corrosive fluid applications.

Size Range: DN50 to DN400 (2″ to 16″)
Max. Allowable Operating Pressure: 16 bar
Temperature Range: -20°C to 150°C
Valve Body Materials (with PTFE lined): Carbon Steel / SS304 (CF8) / SS316(CF8M) / SS316L (CF3M)
Butterfly Disc Materials: PTFE / SS304 (CF8) / SS316(CF8M) / SS316L (CF3M)
End Connections: Wafer / Lugged / Flanged
Connection Standard: GB / DIN / ASME(ANSI) /JIS
OEM Support: Yes

Send Inquiry Now

Meets Safety Standards

Actuator Technical Specifications

Actuator Type On/Off Type Modulating Type Intelligent Type
Product Model VK VR VI
Voltage 12V/24V DC; 24V/110V/220V/380V AC
Actuator Rotation 90 Degrees 0 to 90 Degrees 0 to 90 Degrees
Input/Output Signals dry contact signal, passive contact signal 4-20mA, 1-5V DC, 0-10V DC
Open/Close time(0-90°) 20 to 100 S
Torque Range 50 Nm to 4,000 Nm
Temperature Range -30°C to 60°C
Protection Level IP65 / IP67
Features For 90-degrees fully open/fully close Adjust the opening/closing angle via the adjustment module Add a LCD display screen to the Modulating Type based on its original configuration
*Optional: Compact, waterproof, multi-turn or explosion-proof electric actuators.

Valve Body Technical Specifications

Connection Standard GB / DIN / ASME(ANSI) /JIS
Size Range DN50 to DN400 (2″ to 16″)
End Connections Wafer / Lugged / Flanged
Max. Allowable Operating Pressure 16 bar
Seat Material PTFE
Temperature Range -20°C to 150°C
Valve Body Materials (with PTFE lined) Carbon Steel / SS304 (CF8) / SS316(CF8M) / SS316L (CF3M)
Butterfly Disc Materials PTFE / SS304 (CF8) / SS316(CF8M) / SS316L (CF3M)
*Custom specifications are available
