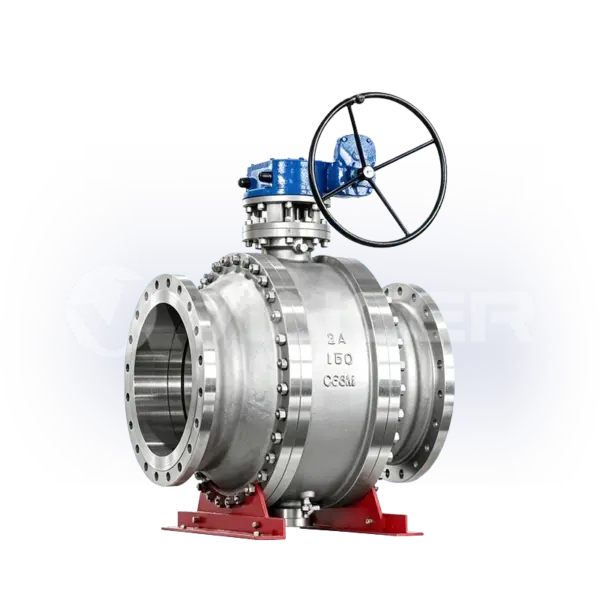

Trunnion Mounted Flanged Ball Valves

Product Model

VH-10FQ47

Description

Trunnion mounted flanged ball valve designed for high-pressure and large-diameter pipeline systems. Unlike standard floating ball valves, the ball is fixed in place by a stem at the top and a trunnion support at the bottom. It does not shift laterally under system pressure. Only the ball rotates during operation, which reduces operating torque and prevents the pressure-induced friction that occurs in floating designs. This makes the valve less likely to jam or deform under high pressure, offering greater reliability and safety in demanding service conditions.

The valve is available in GB or ASME flanged configurations across a size range of DN50 to DN1400 (2″ to 56″), depending on the pressure class selected. Three body material options are available to suit different service media: WCB for water, steam, and oil service; SS304 (CF8) for nitric acid applications; or SS316 (CF8M) for acetic acid applications. Seat material is available in PTFE, rated to 150°C, or polystyrene for higher-temperature service. The maximum operating temperature depends on the body and seat material combination selected.

Size Range: DN50 to DN1400 (2″ to 56″)
Max. Allowable Operating Pressure: GB PN 64 / ASME Class 600
Temperature Range: -20°C to 250°C
Valve Material: WCB / SS304(CF8) / SS316(CF8M)
End Connection Type: Flanged
Connection Standard: GB / ASME
OEM Support: Yes

Send Inquiry Now

Meets Safety Standards

Technical Specifications

Size Range PN 16/25/40: DN150 to DN1400 (6″ to 54″);
PN 64: DN150 to DN1200 (6″ to 48″)		 Class 150: DN50 to DN800 (2″ to 32″);
Class 300: DN50 to DN500 (2″ to 20″);
Class 600: DN50 to DN300 (2″ to 12″)
Connection Standard GB ASME/ANSI
End Connection Type Flanged
Design Standard GB/T 12237 API 608
Flange Drilling HG/T 20592 ASME B16.5
Face To Face GB/T 12221 ASME B16.10
Testing Standard GB/T 26480 API 598
Max. Allowable Operating Pressure PN 16 / PN 25 / PN 40 / PN 64 Class 150 / Class 300 / Class 600
Seat Material PTFE / Polystyrene
Temperature Range PTFE: -20°C to 150°C; Polystyrene: -20°C to 250°C
Valve Body Material WCB / SS304(CF8) / SS316(CF8M)
*Custom specifications are available
