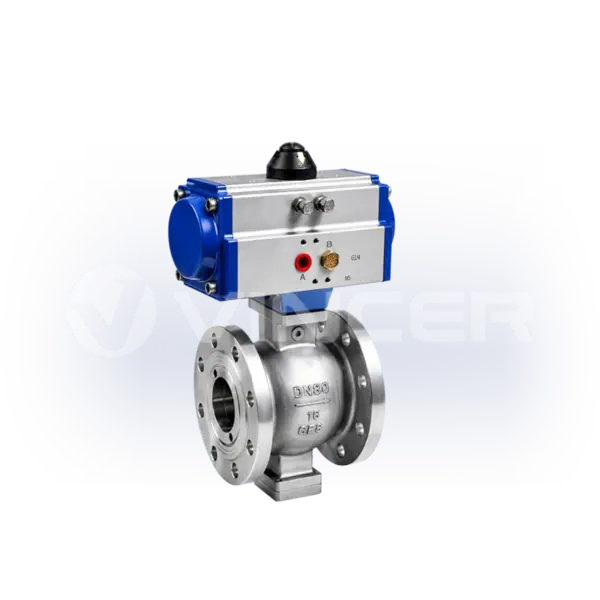

Pneumatic V-Port Segmented Ball Valves

Pneumatic V-port segmented ball valves are designed for automated flow regulation in industrial process pipelines. The V-shaped opening in the ball creates a gradually changing flow area as the valve rotates, allowing more controlled flow adjustment than a standard full-port ball valve.

Different V-port angles are available to match different flow-control requirements. Smaller V-port angles are generally used where finer flow adjustment is required, while larger V-port angles provide higher flow capacity. This makes the valve suitable for process systems that require pneumatic actuation with adjustable flow performance.

The flanged body design provides a stable bolted connection for industrial pipelines. Stainless steel body materials and PTFE seats allow the valve to be used with compatible water, air, gas, oil, and chemical media. The valve can be selected according to flow requirement, pressure rating, medium compatibility, and project specifications.

Single-acting and double-acting pneumatic actuator options are available. The single-acting actuator uses air to open and spring return when the air supply is interrupted, while the double-acting actuator uses compressed air for both opening and closing. Pneumatic accessories such as solenoid valves, limit switch boxes, pneumatic positioners, FRL units, and pneumatic handwheels can be supplied according to the required control method.

Pneumatic V-port segmented ball valves are commonly used in chemical processing, water treatment, wastewater treatment, paper and pulp production, slurry handling, industrial mixing systems, and automated process skids requiring pneumatic flow control.
