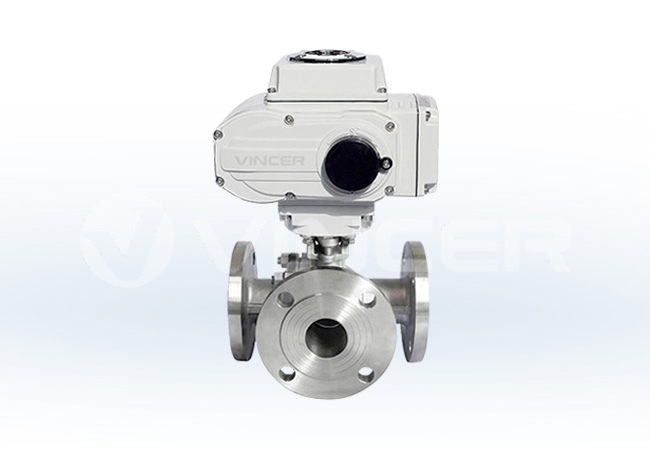

• VK-10F3 Electric Actuated Stainless Steel 3-Way Flanged Ball Valve

Electric Actuated Stainless Steel 3-Way Flanged Ball Valve

MODEL：VK-10F3

VINCER Electric flanged 3-way ball valves can achieve multi-path switching with a single valve. This eliminates the need to combine multiple two-way ball valves, simplifying the system, saving costs, and reducing space requirements.

Highlights

Flexible Flow Paths: The 3-way design allows for direct fluid diverting, mixing, and flow redirection.
System Simplification: It replaces the need for multiple 2-way ball valves, which minimizes leak points and saves both cost and space.
Easy Maintenance: The electric actuator enables remote control, significantly reducing the need for manual operation and routine maintenance.
Get in touch

Electric Actuated 3-Way Flanged Ball Valve
Technical Specifications

Actuator Type

ON/OFF Type

Voltage (Optional)

AC 24V, AC 110-380V,
DC 12V-24V

Rotation

90°

Open/Close time(0-90°)

20~100s

Torque Range
(Optional)

50Nm~4,000Nm

Protection Level

IP65

Environment Temperature

-30°C~60°C

Size Range

DN15-DN300(1/2″-12″)
and large size

Valve Material (Optional)

SS304, SS316(CF8, CF8M),
and Alloy materials

Sealing

PTFE

Temperature Range

Up to 180℃

Pressure Range (Optional)

1 Mpa~10 Mpa

Medium

Water, Air, Oil

Connection

Flanged

Connection Standards

GB / DIN / ANSI / JIS

Ask for more details now

What Is Electric 3-Way Flanged Ball Valve?

VINCER Electric Flanged Ball Valve are designed to regulate fluid flow in pipelines. A single valve can handle complex flow control—supporting both L-port and T-port configurations. This design simplifies your piping system, reduces costs, and saves installation space. Electric flanged ball valves are commonly used in applications such as water treatment, oil and gas production, and chemical processing.

Select your electric 3-way ball valve flow pattern

Our electric 3-way flanged ball valve is designed for efficient flow control in complex piping systems. With options for both T-port and L-port configurations, you can choose the optimal flow diagram to meet your specific application needs.
Get in touch
3-way valve flow diagram

More Types of Electric Actuators for Your Solution

Electric Actuated
ON/OFF Type Actuator

MODEL: VK
For 90-degrees fully open/fully close

Electric Actuated Regulatory Type Actuator

Model: VR
Adjustable valve opening/closing angle 0 to 90 degrees
Get in touch

More Valve Body Material Options for You

Forged Steel A105 Ball Valve

high strength, impact resistance, pressure resistance

Stainless Steel Ball Valve

corrosion resistance, acid-alkali compatible, versatile, easy maintenance

Nickel Aluminum bronze Ball Valve

seawater/weak acid resistance, wear-resistant
Get in touch

Discover Why VINCER Leads in
Actuated Valve Supplies

VINCER Valve, since 2010, specializes in delivering efficient, energy-saving, and environmentally friendly solutions, with particular expertise in electric actuated valves, pneumatic actuated valves, and control valves. We help industries improve fluid control efficiency, save energy, and reduce costs. Our technical support and innovative R&D ensure your project runs smoothly.

800+
Completed Projects

With over 800 successful projects, we have a wealth of experience in meeting diverse industry needs.

650+
Satisfied Customers

More than 650 customers trust VINCER for our reliable products and excellent service.

30+
Certificates &Patents

We hold over 30 certificates and patents, showcasing our strength in innovation and technology.

Technical Support

We provide comprehensive technical support, including selection, wiring, and maintenance guidance, ensuring your project operates efficiently.

Sample Support

To reduce the risk of trying a new brand, we offer sample services to help you test the system and ensure it functions properly.

Cost-Effective

We are committed to providing high-quality, cost-effective valves that help you lower project costs and boost profits.

Contact expert now

VINCER Electric Actuated Flanged Ball Valve Series

Electric Actuated 2Way Flanged Ball Valve

MODEL: VK-10F
Send Inquiry Now

Electric Actuated 3-Way Flanged Ball Valve

MODEL: VK-10F3
Send Inquiry Now

Explosion-Proof Electric Flange Ball Valve

MODEL: QT-10F
Send Inquiry Now

Valve Purchasing Guide

In order to save your purchasing time and provide you with a comfortable purchasing experience, we have listed the following purchasing guidelines, hoping to help you.
Anything we could help with, please consult us at sales@vincervalve.com

What distinguishes each model from the others?

Vincer models are categorized based on their comprehensive linking methods, materials, and valve types. If you are uncertain about which model to choose, please contact us, and we will guide you towards the most suitable option.

Do you offer valve selection services?

We provide optimal selection services for each project, helping you streamline your production process to achieve maximum efficiency.

How can I order samples?

We offer sample services to facilitate thorough testing of your project’s operation. Please get in touch with us, and our team will promptly assist you in placing a sample order.

Do you offer customization services?

We strive to accommodate the unique requirements of each project and offer tailored customization services accordingly.

Do you provide documentation support?

We understand the significance of comprehensive documentation for every project. Therefore, we make every effort to provide you with complete documentation to aid in the installation, usage, and maintenance of our valves.
