Parts of a Ball Valve: Diagram, Types, and Which Parts Fail First

Every plant, water main, and workshop full of pipes runs on ball valves, the little quarter-turn valves that stop and start flow in everything from a household shutoff to a high-pressure process line. And when one starts to leak, most people stare at it. Which ball valve part is failing? Can it be repaired, or does the whole valve have to go? This guide names every part of a ball valve, sorts the whole ball valve family into three structural layers, and tells you which components wear out first and exactly what to do about it.

What Is a Ball Valve? A 60-Second Breakdown

A ball valve is a quarter-turn shutoff device. Inside the body sits a ball with a hole bored through its middle. Turn the handle 90° and the hole lines up with the pipe (open); turn it back and the solid face of the ball blocks the flow (closed). That’s the whole mechanism.

One detail matters for everything that follows: a ball valve seals by rotation, not by pressing down like a gate or a globe valve. That single difference determines which parts exist, which parts wear out, and why “there’s no washer” confuses so many people. More on that in a moment.

Ball Valve Parts Diagram: Every Component, Named and Explained

Once you sort the components into those three buckets, every ball valve on earth becomes readable.

The Pressure-Containing Parts: Body, End Connections, Bonnet

The valve body is the pressure vessel: it holds everything and takes the full line pressure. Body materials run from brass (household plumbing) through stainless steel 304/316, carbon steel, and ductile iron (industrial service). The distinction buyers actually care about: SS316 contains molybdenum and resists chloride pitting far better than SS304. In coastal or chemical environments, that’s the difference between a valve that lasts twenty years and one that pits in a year.

End connections are how the valve joins the pipe: threaded (small sizes, easy install), flanged (large or high-pressure lines, bolted), welded (permanent, leak-proof), and clamped (sanitary/food service, quick strip-down). The bonnet (or top entry) is the part of the body that contains the stem assembly and its seal.

One structural detail worth flagging now: ball valve bodies come as 1-piece, 2-piece, or 3-piece designs, and that choice decides whether your valve is repairable at all. The structural-layer section below sorts this out.

The Sealing & Rotating Parts: Ball, Seats, Stem

The ball is the rotating heart: a sphere with a central bore. It can be full bore (the hole matches the pipe diameter, minimal flow restriction) or reduced bore (smaller passage, lower cost, common in smaller valves).

The seats are the sealing rings that hug the ball on each side. This is the part people misunderstand most: a ball valve has no washer. The seal comes from the ball pressing against the seats. In a floating ball design (the most common type), line pressure pushes the ball against the downstream seat, so the higher the pressure, the tighter the seal. The seats are almost always PTFE-family material, which brings its own temperature limits (covered in the types section).

The stem connects the ball to the handle or actuator and carries the rotation through the body. Around the stem sits the packing (also called stem seal), the component you’ll meet in real life when you see a drip under the handle.

The Operating Parts: Handle, Packing, and Actuators

The handle (lever) turns the stem, with a locking position at 90° open and 90° closed. Under the handle, the packing seals the stem where it passes through the body, and “it’s leaking right under the handle” is almost always a packing problem, not a ball problem. Sometimes tightening the packing nut is the entire repair.

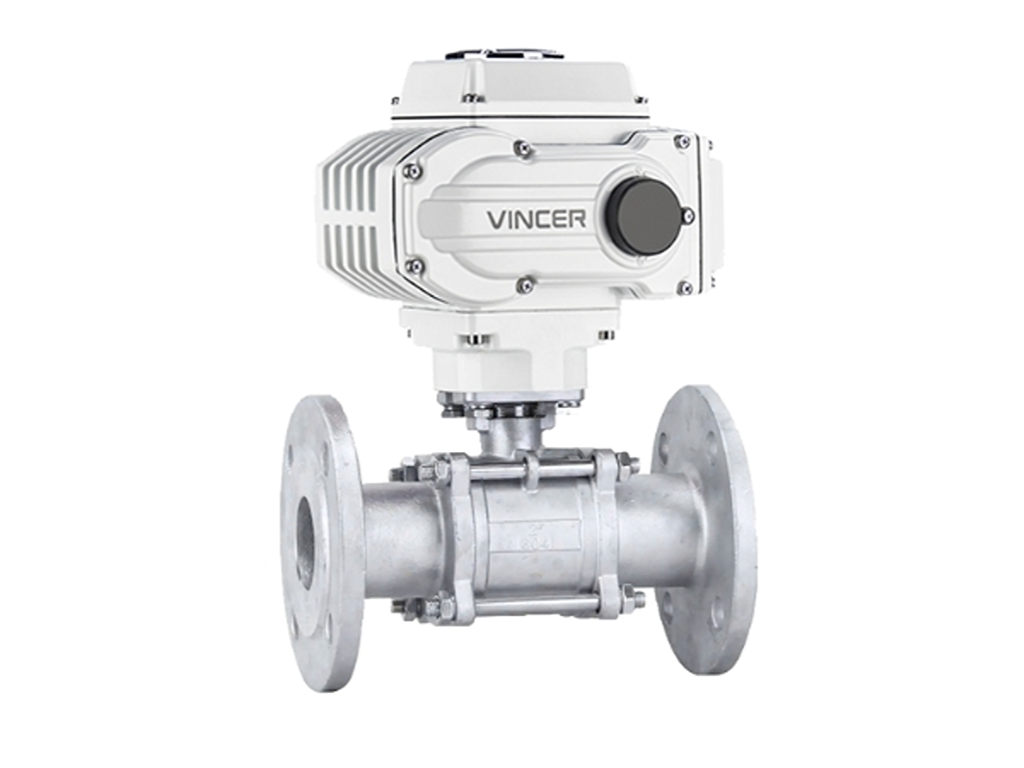

Beyond the handle, ball valves can be automated: a pneumatic actuator (fast, works where compressed air exists) or an electric actuator (for sites without air supply) bolts onto the standard actuator flange. Because actuator mounting follows the ISO 5211 flange family, the same valve body can be converted from manual to automated without changing the valve itself. Who turns the stem — a hand or a machine — is the biggest fork in the ball valve family, and it gets its own section below.

Ball Valve Parts vs. Other Valves: What’s Different and Why It Matters

If you’ve ever repaired a gate valve or a stop valve, your mental parts list is wrong for ball valves. That’s why “ball valve parts” confuses people coming from other valve types. Gate and globe valves seal by a disc pressing down onto a seat, and they use replaceable washers. Ball valves seal by a sphere rotating against the seats, so no washer exists, and the leak points are entirely different.

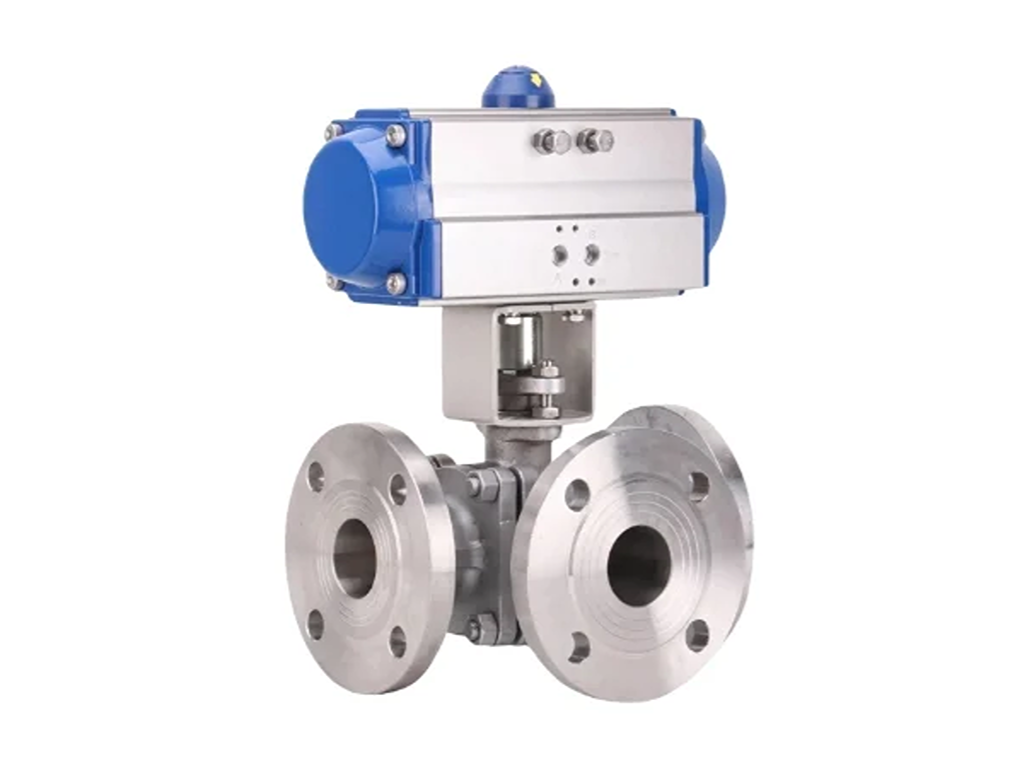

One note that carries over into the types section: three-way and V-port ball valves add extra flow paths beyond the standard parts — the three-way ball carries L-shaped or T-shaped internal ports, and the V-port shapes flow for throttling. Same parts list, different ball geometry.

Types of Ball Valves: Three Structural Layers, One Working Principle

Every ball valve still works the same way — a bored sphere rotating 90°. What differs is how that sphere is supported, what its bore looks like, how the body is assembled, and who turns the stem. Four structural layers, and every ball valve on the market is a combination of them. Read this section once and you can place any ball valve you meet.

Layer 1 — Ball Support: Floating and Trunnion (the Two Most Common)

Floating and trunnion designs are the two most common ball valve types in industrial service. A floating ball rides loose and uses line pressure to push itself against the downstream seat. The higher the pressure, the tighter the seal — which also means low-pressure service is the real sealing challenge. A trunnion ball is held by fixed supports top and bottom, so it doesn’t depend on pressure for sealing; trunnion designs handle high pressure (Class 150 up through Class 2500), large diameters, and frequent cycling, at a higher cost.

The seat material that hugs that ball is chosen against the media, and it’s where most premature failures come from:

The pattern: seat material and ball design are selected against the media and temperature, not against the catalog price. A seat that’s fine in cold water can fail in months on a hot-oil line.

Layer 2 — Ports and Bores: 2-Way, 3-Way (L/T), V-Port, Full vs. Reduced Bore

The bore through the ball decides what the valve can do with the flow. Full bore matches the pipe diameter — minimal pressure drop, easy cleaning, and the right choice wherever flow matters. Reduced bore is cheaper and common in smaller sizes. Three-way balls carry L-shaped or T-shaped internal ports: an L port switches flow between two lines, a T port mixes or diverts. V-port balls (or seats) carry a V-shaped notch that shapes the flow curve, so the valve can throttle instead of just open and close. Skip these unless your service needs them — 90% of applications run on plain two-way valves.

Layer 3 — Body Assembly: 1-Piece, 2-Piece, 3-Piece

How the body is put together decides whether you can repair the valve at all. 1-piece: one solid casting, cheapest, internals inaccessible — effectively throwaway. 2-piece: main body plus one end connection, repairable, but reopening the threaded joint can gall (seize). 3-piece: two end connections bolt around a removable center section — you can pull the core out and swap seats, ball, and stem without removing the valve from the pipe. (Rarer body layouts exist: top-entry for in-line access, welded-end for permanent lines.) The repair consequences of this layer get their own section below.

Layer 4 — Operation: Manual vs. Actuated

The last layer asks who turns the stem. Manual ball valves are turned by a handle: cheap, no energy dependency, fine for occasional use. Actuated ball valves bolt a pneumatic or electric actuator onto the standard ISO 5211 flange — the same valve body can switch between manual, pneumatic, and electric without changing the valve itself. This is the fork where most buyers make their first real decision, and it’s worth a section of its own.

Manual or Actuated? The Fork That Changes Your Ball Valve Parts List

Ask yourself three questions. Does the valve get cycled frequently, or sit in a position nobody visits? Does it live somewhere remote, elevated, or otherwise hard to reach? Does the plant control system need to see its position? If you answered yes to any of them, you’re describing an actuated valve — and that changes the parts list completely.

Above the manual parts, a second parts set appears. The actuator itself: pneumatic rack-and-pinion units typically run from roughly 8 N·m up to 4,678 N·m, electric quarter-turn units up to 4,000 N·m, with switching times under a second for pneumatic. Then the accessories: limit switches report valve position back to the control system, a solenoid valve pilots the air for pneumatic units, and modulating duty adds a positioner. Two specs matter more than any other on an actuated valve: the actuator-to-valve torque match (actuator torque must exceed valve breakaway torque with margin), and the ISO 5211 interface — both should appear in writing on the quote.

And automation is becoming the default, for three structural reasons rather than fashion. First, the interface is standardized: because ISO 5211 flanges are a published standard, a manual valve bought today can be upgraded to actuated next year without replacing the valve — the industry is laying the rails for automation. Second, staffing: plants run with fewer maintenance hands per valve, and a remotely switched valve removes a trip to the line. Third, data: predictive maintenance depends on position feedback, and that signal comes from the very accessories an actuated valve carries. None of this says manual valves are obsolete — a low-cycle, low-risk point is fine with a handle. But the direction of the industry is unambiguous, and the parts list follows it.

Which Ball Valve Part Fails First? A Leak Diagnosis Guide

Plain language first: in household plumbing, the leak tells you which part failed by where it leaks. In industrial service, parts fail from being pushed past their limits. Both start from the same diagnosis table.

This is exactly where the body-assembly layer pays off: a 1-piece valve with a failed seat is a throwaway; a 3-piece valve with a failed seat is a 20-minute core swap with the pipe still connected.

In plant service, the same parts fail by a different logic. Seats fail not from age but from mismatch: media temperature above the seat material’s limit (PTFE softens), or particles and abrasive flow cutting the sealing surface. When engineers diagnose a leaking steam ball valve, the real cause is usually upstream: a blocked condensate trap, water hammer, or steam flashing that deforms the seat. Once deformed, an upstream seat can be pushed out of its groove when pressure gets behind it. Two facts worth keeping. Floating balls seal better at high pressure, so low-pressure service is the real challenge; around 80 psi, the factory air-seat test is famously one of the hardest to pass. And every new industrial valve should arrive with documented pressure and leak testing. API 598 is the industry benchmark procedure for valve inspection and testing (Inspectioneering, API 598), and pressure–temperature ratings come from ASME B16.34.

How to Choose Ball Valve Parts: A Buyer’s Checklist

Whether you’re replacing one valve or standardizing across a plant, run this checklist. Each line is both a spec and a question to put to your supplier:

• Size & pressure class — confirm the pipe size, and pin down the pressure rating system (PN, Class, or JIS; they don’t convert cleanly).
• End connection — threaded, flanged, welded, or clamped, matched to your piping.
• Body style — 1/2/3-piece, chosen by how repairable you need the valve to be.
• Seat material — matched to media and temperature, using the boundary matrix above.
• Ball design — floating or trunnion, the two most common types, picked by pressure and cycling duty.
• Actuation — manual, pneumatic, or electric; on automated valves the actuator, limit switches, and solenoid are part of the parts list, so confirm air supply, torque, and the ISO 5211 interface.
• Testing & documentation — ask for pressure/leak test records and material certificates (MTC) before accepting a batch.
• Spares & lead time — confirm spare seats and packing are stocked, and ask how long stock vs. custom-built valves take.

Don’t compare valve quotes on body price alone. Fold in spare parts availability, test documentation, and lead time. That’s what turns a purchase into a five-year operating cost.

What to Ask a Valve Supplier Before You Buy

The checklist above becomes sharper when you point it at a real supplier. Four questions separate paper quotes from working valves:

1. Show me the test records. Pressure and leak test results per API 598 practice, plus material certificates (MTC) for the batch — a supplier who can’t produce them for the last shipment probably can’t produce them for the next one either.
2. What’s your spare-parts policy? Are seats and packing stocked for the sizes you sell? Is anything covered under warranty? A seat that fails on a Friday afternoon should be a phone call, not a procurement project.
3. Walk me through my own selection. Your media, temperature, and pressure, not a catalog page. If the supplier’s engineer can’t map your service to a specific seat material and ball design, the quote is guesswork.
4. Can you document the torque match? If the valve is actuated — and after the last section, consider whether it should be — the actuator-to-valve torque match and the ISO 5211 interface belong in writing on the quote. This is where cheap automation deals come apart in the field.

For a manufacturer whose core business is actuated valves, electric and pneumatic actuators mated to ball, butterfly, and globe bodies, the answer to all four is usually one conversation: bring them your media, temperature, and pressure, and the parts list follows, actuator included (the ball valve product range is a practical example: VINCER builds its electric and pneumatic actuated valves in-house, with actuator torque ranges from 8 N·m to 4,000 N·m on standard ISO 5211 interfaces, so the torque spec is documented rather than assumed; selection support covers eight dimensions from media to connection standard, spare parts are free within warranty, and standard quotes come within 24 hours). If your checklist has open questions, that conversation is how you close them: request a quote and test the supplier the way you’d test the valve.

What Ball Valve Failures Teach Distributors About Valve Economics

Step back from the bench and the parts make a bigger point. The three experiences that dominate ball valve maintenance — a drip under the handle, the “repair or replace” decision, and the leak that comes back after a fix — are each teaching something about how the valve was built, and each one is a line item in a distributor’s economics. A leak under the handle tells you the packing was fitted and torqued properly. A “repair or replace” decision exists only because someone chose a 1-piece, 2-piece, or 3-piece body; the repairability was decided at purchase time, not at failure time. And a leak that returns means the replacement part didn’t match the service: seat material chosen for price instead of temperature, or a floating ball asked to seal a service it wasn’t built for.

For distributors and wholesalers, that chain of lessons is a product strategy in itself. When a maintenance team replaces seats every few months, the seat material was specified wrong — that’s a return and a warranty claim waiting to happen. When a valve fails at low pressure, the design was wrong for the duty. When the plant has no spares and no test records on file, the purchasing process skipped the questions that matter. Valves aren’t bought on pressure rating alone. They’re bought on materials matched to service, documented testing, and a spare-parts policy that keeps downtime short.

And that points at where the money is. A bare valve is close to a commodity: catalog prices, thin margins, and buyers comparing three quotes side by side. The engineering value sits one layer up — in the assembled unit, where torque matching, interface alignment, fail-safe behavior, and control integration can’t be priced from a catalog. That’s why profit follows automation demand: every valve that becomes actuated moves from the commodity column to the engineering column.

The practical read for a distributor: make the manual-to-actuated upgrade a standard conversation, not a request. Stock matched actuator-and-valve pairs rather than bare valves alone, so the upgrade is a same-week delivery instead of a procurement project. And hold suppliers to the four questions from the previous section — test records, spare-parts policy, real selection support, documented torque — because every one of them is a cost you’ll otherwise carry as warranty claims and lost customers. The supplier that answers all four isn’t just selling valves; they’re selling the margin structure your business runs on.
