Miniature Motorized Stainless Steel Ball Valve
MODEL: VMP-10T
VINCER VMP Series Miniature Motorized Ball Valve offers space-saving efficiency and precise fluid control, perfect for tight installations and automated systems.
Favorable prices, suitable for customers with tight budget requirements.
Highlights
Power-Off Automatic Reset：The mechanical ball within the valve returns to its normal position when power is removed.
Technical Specifications
Actuator Type
ON/OFF Type
Voltage (Optional)
AC 110-230V, DC 12V-24V
Rotation
90°
Open/Close time(0-90°)
7s-12s
Torque Range(Optional)
2.0Nm-15Nm
Protection Level
IP65
Shell Material
Engineering Plastics
Size Range
DN15-DN50(1/2″-2″)
DN50-DN200（2英寸-3/4英寸）
Valve Material (Optional)
SS304, SS316(CF8, CF8M)
Sealing
PTFE
Temperature Range
-10°-90°C
Max. Pressure
1.0 MPa
Medium
Water, Air,Oil
Connection
Threaded
Valve type (Optional)
2 way, 3 way
Product by Valve Types

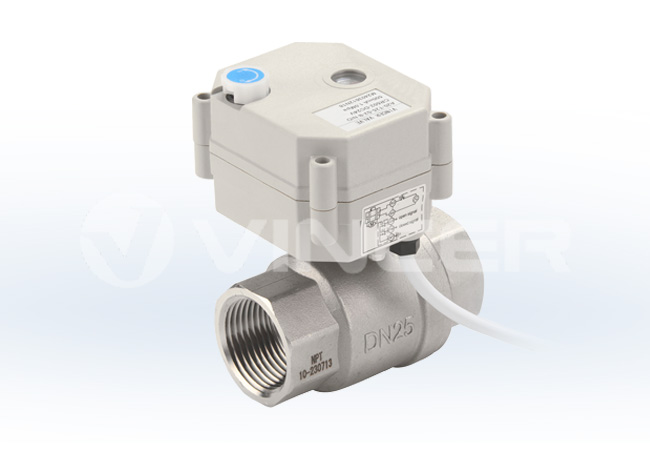

Model: VMP-10T

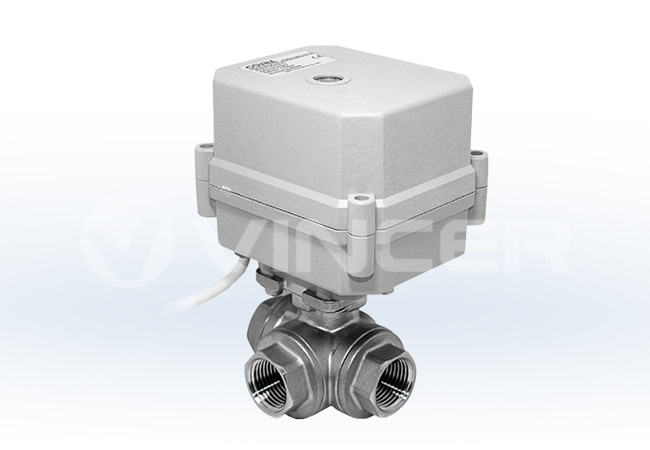

Model: VMP-10T3
